IEC 62196-1 Misalignment tester
Produktdetails:
| Place of Origin: | China |
| Markenname: | Kingpo |
| Zertifizierung: | Calibration Certificate |
| Model Number: | KP-CD213 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | To be Quoted |
| Verpackung Informationen: | Sicherheitskartonsatz oder Sperrholzkasten |
| Lieferzeit: | 35 Arbeitstage |
| Payment Terms: | T/T |
| Versorgungsmaterial-Fähigkeit: | 1000 Stück pro Monat |
|
Detailinformationen |
|||
| Standard: | IEC 62196-1-Klausel 36.3 | Testzweck: | Steckdosen Fehlausrichtung Tester |
|---|---|---|---|
| test sample: | charge gun | Kraft: | 100 N |
| voltage: | 220V | Prüfstand: | 3 |
Produkt-Beschreibung

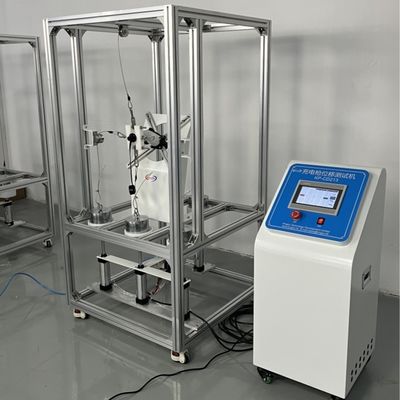

IEC 62196-1 Misalignment tester
Standard: according to IEC62196-1:2022-clause 36.3
Application: It is used to test whether electrical accessories with electronic locking devices such as electric vehicle charging interfaces, industrial plugs and sockets and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects. To verify its reliability.
Usage environment: Power supply: AC220V±10%/50-60Hz, 0.5Kw, working temperature 0-40℃, humidity 30%-90%.
| Dimensions | W1000*D1000*H1700mm; weight: about 100kg |
| Station | 3 station |
| Electrical control method | Mitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation |
| Operation mode | Manual or program-controlled operation |
| test times | 0-9999 |
| Drive mode | Pneumatic |
| force | 100N |
| remove time | 0-9999s |
| load time | 0-9999s |
| power | 220V 50/60HZ |
