IEC 60601-2-52 Medical Bed Tester -Impactor

MOQ:	1
Preis:	To be quoted
Standardverpackung:	Sicherheitskartonpack oder Sperrholzbox
Lieferfrist:	7 Arbeitstage
Zahlungs-Methode:	T/t
Lieferkapazität:	10 Stück pro Monat

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort

CHINA

Markenname

kingpo

Zertifizierung

ISO 17025

Modellnummer

IEC 60601-2-52-Figure BB.2

Markenname:

Kingpo

Material:

Stahl

Standard:

IEC 60601-2-52

Garantie:

1 Jahr

Hervorheben:

IEC 60601-2-52 medical bed tester

medical bed impactor tester

medical test equipment with warranty

Produkt-Beschreibung

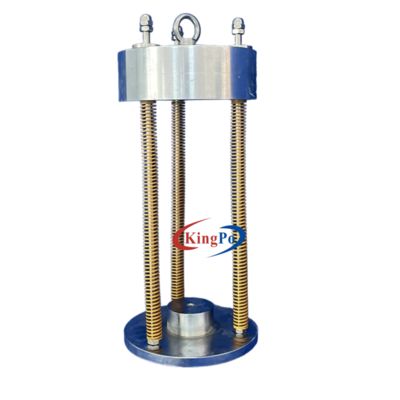

IEC 60601-2-52 Medical Bed Tester - Impactor

Product Description

IEC 60601-2-52 - figure BB.2 Medical Bed Tester - Impactor

BB.2.2 The effect of impacts to the MATTRESS SUPPORT PLATFORM
The MEDICAL BED shall be able to withstand the effect of impacts to the MATTRESS SUPPORT PLATFORM being applied during NORMAL USE.

Compliance Test Procedure

Place the mattress, as specified by the MANUFACTURER, onto the MATTRESS SUPPORT PLATFORM
Position moving elements free of supporting elements with inclination less than 7° in relation to horizontal
For height-adjustable platforms, position in the middle of the adjustment range
From 180 mm above the mattress, drop the impactor (see Figure BB.2) onto the MEDICAL BED 20 times at each "B" location (Figure BB.1)
Impactor may be guided to ensure accurate impact locations
After testing, no elements shall become loose, fractured, or present any HAZARD

Technical Specifications

Parameter	Specification
Impactor Body Diameter	Approximately 200 mm
Total Mass	25 kg ± 0.1 kg
Body Mass (minus springs)	17 kg ± 0.1 kg
Spring System	Helical compression springs separating body from striking surface
Combined Spring Rate	6.9 N/mm ± 1 N/mm
Friction Resistance	0.25 N to 0.45 N
Compression at 1040N ±5N	Minimum 60 mm remaining compression distance
Striking Surface	Rigid circular object: 200 ±5 mm diameter with 300 mm radius convex spherical curvature and 12 mm front edge radius

Umbauten:

IEC 60601-2-52 Medical Bed Tester，Dynamic forces due to loading from persons, Medical Beds Strength and durability tester
